Constitution Machinery
Leading Manufacturers, Exporters, Wholesaler, Retailer and Distributor of Electric Cement Grouting Pump and Hydraulic 2 Roll Thread Rolling Machine from Udaipur.
| Business Type | Manufacturer, Exporter, Supplier, Retailer, Distributor |
| Power Source | Electric |
| Voltage | 415 V |
| Application | Construction |
| Automatic Grade | Semi Automatic |
| Max Pressure | 20 Bar |
| Motor Power | 5 Hp |
| Grout Material | Cement Sand,Cement,Epoxy |
| Frequency | 50-60 Hz |
| Head | 50 Mtr |
| Phase | Three Phase |
| Temperature | Ambient |
| Capacity | Upto 50 M3/hr |
| Dispersion Plaster | Floor Screed |
| Finish | Color Coated |
| Solids Handling Capacity | Upto 12% |

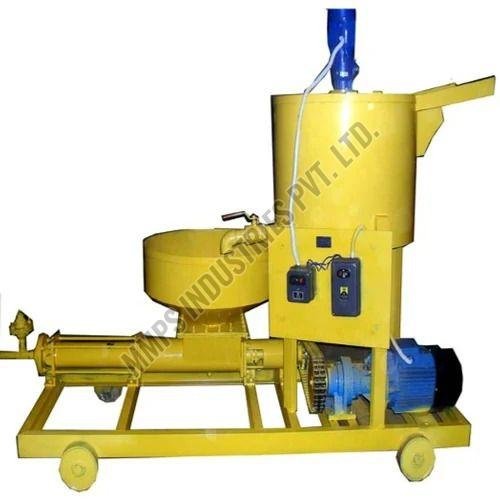

The progressive cavity Cement Slurry pump is solution when pumping viscous, abrasive materials, to pump neat cement, bentonite, cement/bentonites, ultra fine cements and some smooth, creamy, lightly sanded packaged grout mixes, cement/sand mortar and plaster coats. These pumps are designed with variable speed control with VFD or chain Sproket.
Applications
High Pressure Grouting
Building Construction
Floor Toping
Floor Restoration
Slab Under Sealing
Mud Jacking
Roadways Repair
Dowel Rod Grouting
Slab Raising
Waterproofing
Cable
Rock Bolts
Well Casing
Spraying Top Coats
Plastering
| Business Type | Manufacturer, Exporter, Supplier, Retailer, Distributor |
| Roll Type | Two Roll |
| Max Pitch Can Be Rolled (mm) | 2.5 |
| Max Diameter Can Be Rolled In Feed (mm) | 25 |
| Max Diameter Can Be Through Feed (mm) | 18 |
| Max Rolling Length In Feed (mm) | 80 |
| Max Rolling Length Through Feed | Indefinite |
| Max Outer Diameter Thread Rolls (mm) | 120 |
| Spindle Diameter (Bore Diameter) (mm) | 40 |
| Max Width Thread Rolls (mm) | 80 |
| Max Rolling Force | 8 Tons |

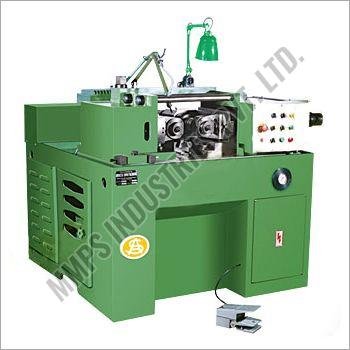

Description- Hydraulic 2 Roll Thread Rolling Machine by MMPS industries pvt ltd is a precision-engineered device designed for efficient thread rolling on various materials, including steel, aluminum, and brass. This advanced machine employs hydraulic power for smooth and consistent operations, ensuring high-quality thread formation with exceptional accuracy. Featuring robust construction, the machine is built to withstand rigorous industrial use while maintaining low maintenance requirements.
The two-roll configuration enables the production of precise and uniform threads by exerting symmetrical pressure on the workpiece, enhancing durability and strength. It is equipped with a user-friendly control system that allows for easy adjustments and monitoring, ensuring optimal performance and minimal downtime. The machine supports a wide range of thread sizes and pitches, making it versatile for diverse applications in automotive, aerospace, and manufacturing industries. Additionally, the MMPS industries commitment to innovation and quality ensures that this thread rolling machine delivers reliable and efficient performance, meeting the demands of modern production environments
Technical Attributes
TWO ROLL TYPE RTD - 25 RTD - 40 RTD - 50 RTD - 80 RTD - 100 RTD - 120
Max.Pitch Can Be Rolled (In Mm) 2.5 3.5 4 5 5.5
Max.Dia Can Be Rolled in Feed (In Mm) 25 40 50 80 100 120
Max.Dia Can Be Through Feed (In Mm) 18 28 35 40 50 70
Max. Rolling Length In Feed (In Mm) 80 100 150 150 150 150
Max.Rolling Length Through Feed indefinite indefinite indefinite indefinite indefinite indefinite
Max.Outer Dia Thread Rolls (In Mm) 120 180 180 180 200 220
Spindle Dia (Bore Dia) (In Mm) 40 54 54 69.85 76.20 76.20
Max.Width Thread Rolls (In Mm) 80 100 140 150 150 150
Max.Rolling Force 8 Tons 12Tons 15Tons 24Tons 30Tons 40Tons
Power For Roll Spindles 3 H.P. 1440 RPM 5 H.P. 1440 RPM 7.5 H.P. 1440 RPM 10 H.P. 1440 RPM 12.5 H.P. 1440 RPM 20 H.P. 1440 RPM
Power For Hydraulic Pump 2 H.P./3H.P. 960/1440 RPM 2 H.P./3H.P.960/1440 RPM 5 H.P. 960/1440 RPM 5 H.P./7.5H.P 960/1440 RPM 5 H.P./7.5H.P 960/1440 RPM 7.5 H.P.960/1440 RPM
